Slide 29

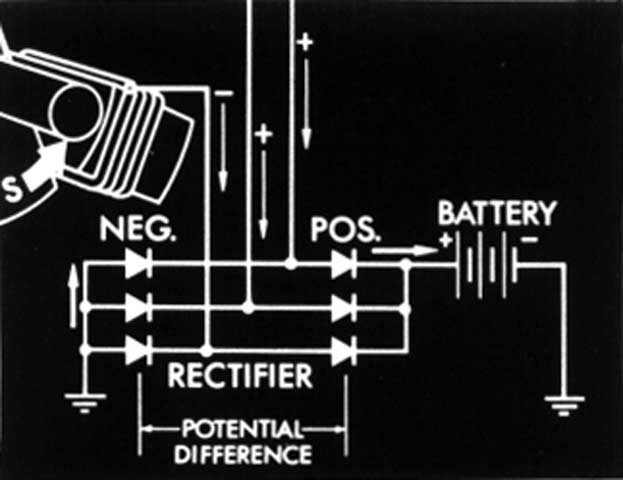

When a pulse of current arrives at the rectifier circuit, it produces a potential difference between the negative and positive diodes whether the pulse itself is plus or minus.
