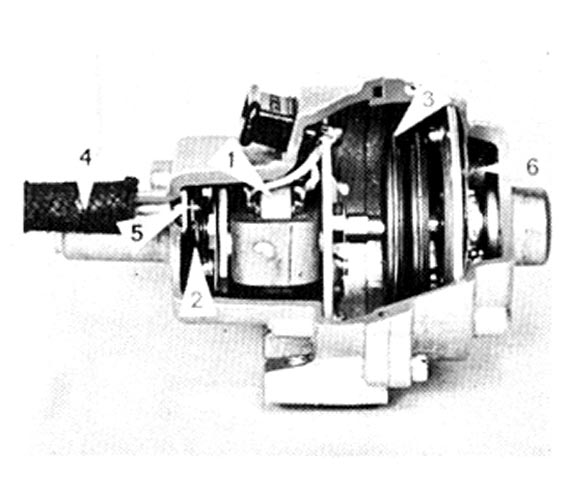

The barometric discs in the pressure sensor regulate an induction device. There are two induction coils (1) with an iron core between them, which spring 2 keeps pressed against the barometric discs (3). The unit is connected to the intake air distributor by a hose (4) and flap valve (5). The compartment at 6 is vented to outside air.
