Slide 61

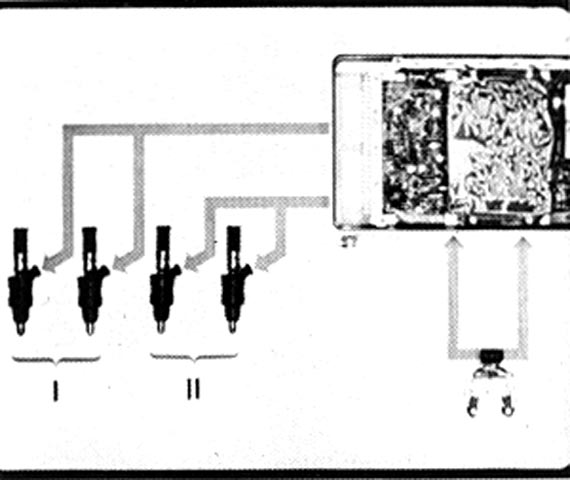

Now let's look at the injectors. For simplicity and economy of design, they operate as two pairs, injecting alternately -- pair one, then pair two -- when triggered by the contacts we just saw.
