Slide 37

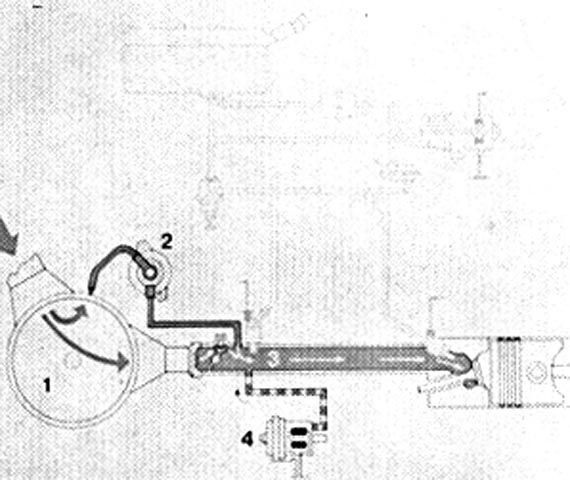

Note this line from the air cleaner to the auxiliary air regulator -- the warm-up air system. The colder the engine the more air comes through this route. The pressure sensor (4) connects by another line.
