Slide 38

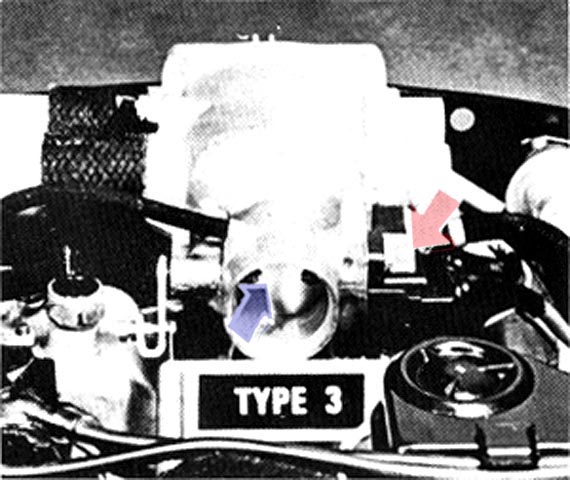

Here you see the intake air distributor, with the blue arrow at the throttle valve. The throttle valve also operates the throttle valve switch -- red arrow. This tells the control unit the position of the throttle valve.
